Teledyne Flir Machine Vision

New 16 MP Blackfly S that Breaks Through GigE Barriers

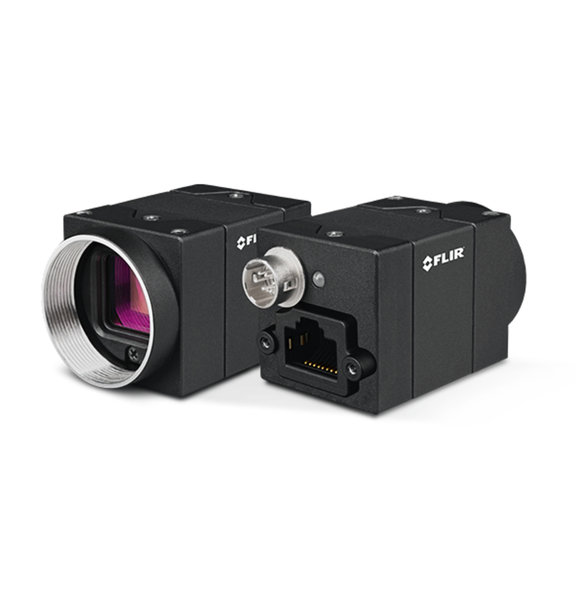

Introducing the latest additions to our Blackfly S GigE camera lineup – the BFS-PGE-161S7M and BFS-PGE-161S7C deliver a high-resolution sensor in a compact form factor, superior price to performance ratio and exceptional low-light performance. The 16 MP Sony IMX542 (Pregius S series) features back-illuminated sensor pixel (BSI) technology, significantly improved quantum efficiency (QE), reduced pixel sizes, and enables the use of less expensive and more compact optics.

New 16 MP Blackfly S that Breaks Through GigE Barriers

These new Blackfly S cameras also take advantage of our new Lossless Compression feature, delivering up to 60% higher frame rates without compromising on image quality. This value driven combination enables further cost reductions by replacing several low-resolution cameras with a single unit, delivering higher frame rates, lower bandwidth utilization and lower lighting system requirements. These new Blackfly S global shutter cameras with BSI technology are suitable for a range of applications – from PCB and semiconductor inspections to metrology and scientific research among several others. Read along for more detailed specs, pricing and to consult a specialist about your project requirements.

• 16 MP global shutter enables precise measurement of large objects
• Lossless Compression enables 60% higher FPS (from 7FPS to 12 FPS @ full resolution)
• High QE and low noise yield a low Absolute Sensitivity Threshold (4.1 photon AST)
• Superior quantum efficiency (69% QE @ 525nm)
• Excellent low-light performance (2.34 e- read noise)
• BSI pixels enable less expensive, more compact optics
• High sensitivity (High QE and Low AST) reduces lighting system requirements
• Replace multiple low-resolution cameras with this single high-resolution camera

CTA: Color Model CTA: Mono Model

  Ask For More Information…
