MapleSim 5

New component libraries and enhanced modeling environment reduce development time for more applications

MapleSim 5

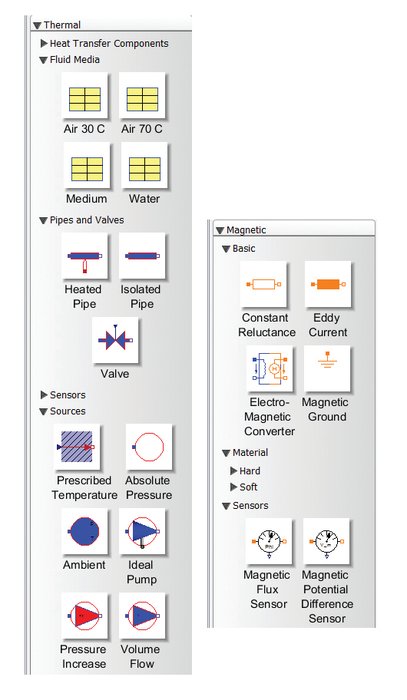

With its broader application scope, streamlined modeling environment, and ability to efficiently simulate even more systems, MapleSim 5 makes it easier to tackle large projects and get results quickly. MapleSim 5 comes with over 150 new components, including new libraries for magnetics and thermal fluids, which means the power of MapleSim can be applied to even more modeling projects. With these components, customers can use MapleSim 5 to quickly develop a wider range of applications, such as the solenoids in dialysis machines and fuel injection systems, saturating motors and transformers, and heat exchangers for machine cooling systems.

The MapleSim 5 interface includes many new and improved features to reduce model development time and help customers manage the complexity of their models. For example, enhanced diagnostic tools provide early feedback related to the definition of the model itself, such as identifying inconsistent initial conditions. MapleSim then provides assistance in resolving the problem, so corrections can be made before running the simulation. Other additions include increased control over parameters and initial conditions, easy export of 3-D animation simulation results, and streamlined design environments for building both model diagrams and 3-D model representations. The improved simulation engine in MapleSim can now generate highly optimized C code for all MapleSim models. This royalty-free code can be incorporated into other software in the toolchain.
