Verlinde

VERLINDE PAL RANGE : LIFTING BEAMS

PAL is VERLINDE's most recent range of lifting beams for loads of 125 to 10,000 kg.

VERLINDE PAL RANGE : LIFTING BEAMS
With its rupture safety factor rated 5, the PAL range is manufactured to standard NFE 52210 and classed FEM5. The lifting beams have no load bearing welded parts, are rustproof and coated with RAL1028 glycerine paint. All models are fitted as standard with bow shackles, reel hooks and safety latches.

Many options are available such as "Y" type models with 3 hoisting points or "X" type with 4 hoisting points, galvanized spreading beams, special lifting beams, lifting beams for Big Bag systems or special aluminium lifting beams for light hoists.

There are 5 models in the PAL range:
-PAL P2F, lifting beam with central hanging and 2 fixed lifting points,
-PAL P2R, with central hanging and 2 adjustable lifting points,
-PAL P4F "H" type with central hanging and 4 fixed lifting points
-PAL P4R "H" type with central hanging and 4 adjustable lifting points.

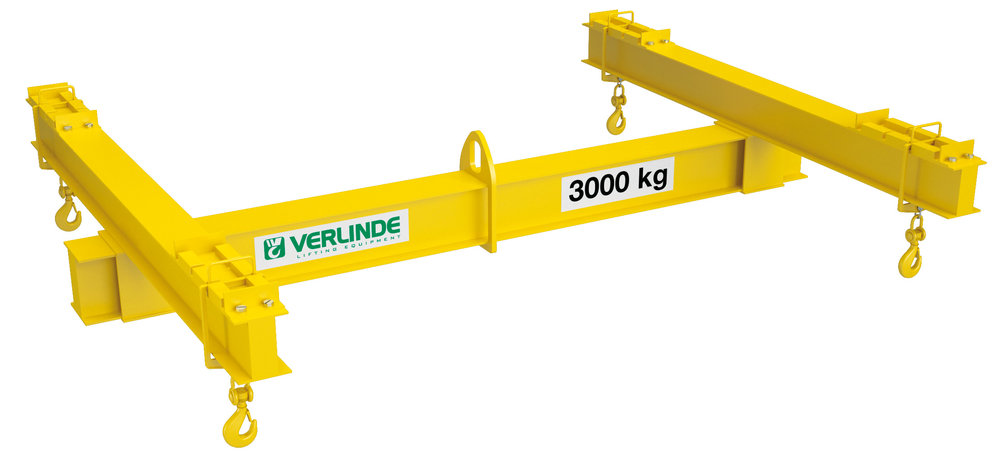

Palonnier1.jpeg: P4R lifting beams– 4 adjustable suspension points – steel version
Palonnier2.jpeg: P2R ALU lifting beams– 2 adjustable suspension points – aluminium version
