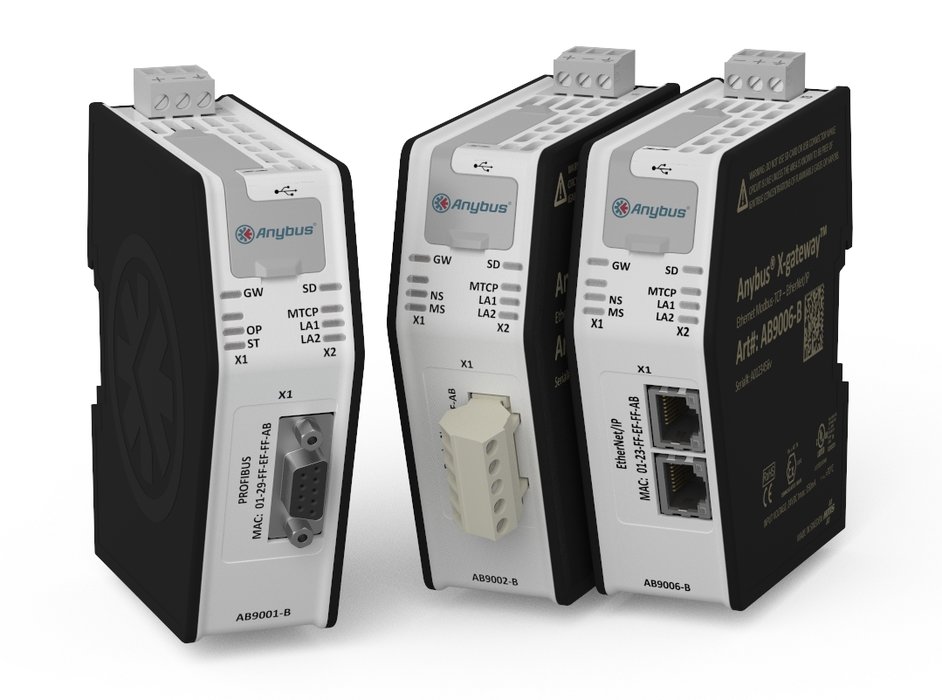

First versions are Modbus TCP Client/Master gateways connecting ModbusTCP to Profibus, DeviceNet and EtherNet/IP.
As all Anybus gateways, the X-gateway for Modbus TCP solves important connectivity issues for system integrators working with industrial network design. These issues include connecting two otherwise incompatible networks in a factory, migrating to a newer network standard or expanding the length of an existing network.
This new release is the first in HMS’s new Anybus gateway generation with a new design and look. “We first showcased the new gateway concept last year and we know that there is a great need to connect Modbus TCP-enabled devices to Profibus, DeviceNet and EtherNet/IP,” comments Martin Falkman, Product Line Manager, Gateways at HMS. “This new generation of gateways will solve many industrial communication problems and we will continuously add on more network versions in the near future.”
New design makes system integration easier
The gateway design offers many benefits for the user such as easier cable connection, backplane stacking possibilities and a wall-mount option for harsh industrial environments. The gateways are designed to operate in rugged industrial conditions and are certified by CE, RoHS, UL, Haz.Loc, ATEX, with Marine certification pending (AICS E10DNC 2.4).
How it works
The X-gateway works as a client/master on the Modbus TCP network (which can eliminate the need for an additional PLC or master) and a slave/adapter on the Profibus, DeviceNet and EtherNet/IP network. It is connected via a 24 VDC power supply, has a power consumption of no more than 150 mA and passes up to 256 bytes of transparent, cyclic I/O input and output data. The new gateway is designed to provide a very fast transfer of I/O data between networks, typically with a delay of no more than 5ms.
The dual Ethernet port on the down-link side allows daisy-chaining and eliminates the need for parallel wiring. Configuration is handled through a web interface without the need for any programming. By using an SD memory card, the gateway can be exchanged without any configuration at all which shortens the down time considerably.
