SOURIAU – SUNBANK Connection Technologies
ELIO® AQ - Adaptor Size 8 for ELIO® Contacts

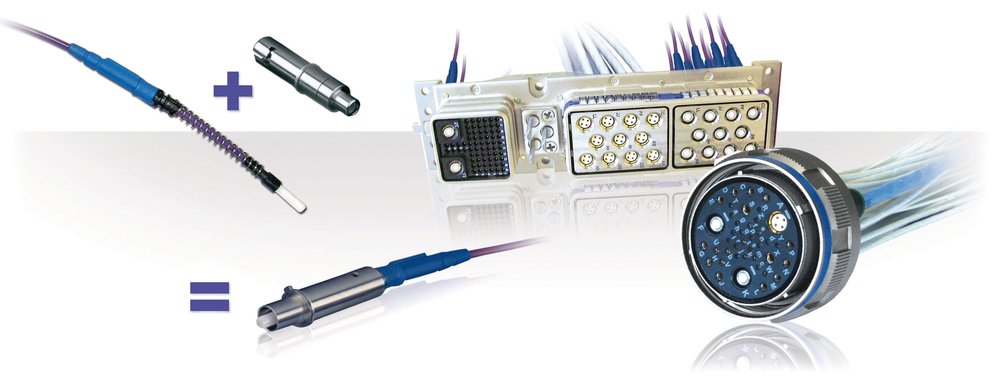

ELIO® AQ is a metal adaptor for ELIO® optical contacts, for size 8 Quadrax cavities. It enables a standard ELIO® optical contact to be inserted into the size 8 Quadrax cavity of several connector types. The ELIO® AQ adaptor is already available for connectors in the MIL-DTL-38999/EN3645 series III, ARINC 404 and ARINC 600 ranges. All insert arrangement types with a size 8 cavity can thus be fitted with a fiber optic connection using the ELIO® optical contact.
With its ELIO® AQ adaptor, SOURIAU has facilitated the combination of optical and electrical connections into a single connector which was initially developed for electrical requirements only.
This is the ideal solution for applications in a harsh operating environment with temperatures from -65°C to +125°C and intense vibration.
The ELIO® AQ adaptor safeguards all the benefits of the ELIO® contact:
- easy bayonet fitting, with no special tools required
- easy cleaning, with the female contact being surface-mounted on the insert, and not inset
- an IP 67 watertight solution with seals integrated into the ELIO® contact.
ELIO® AQ is easily implemented and flexible, for the integration of an ELIO® optical channel into an electrical connector’s size 8 Quadrax cavity.
SOURIAU Product Contact:
Alain Philippe
Phone: +33 2 43 54 35 09
This email address is being protected from spambots. You need JavaScript enabled to view it.
