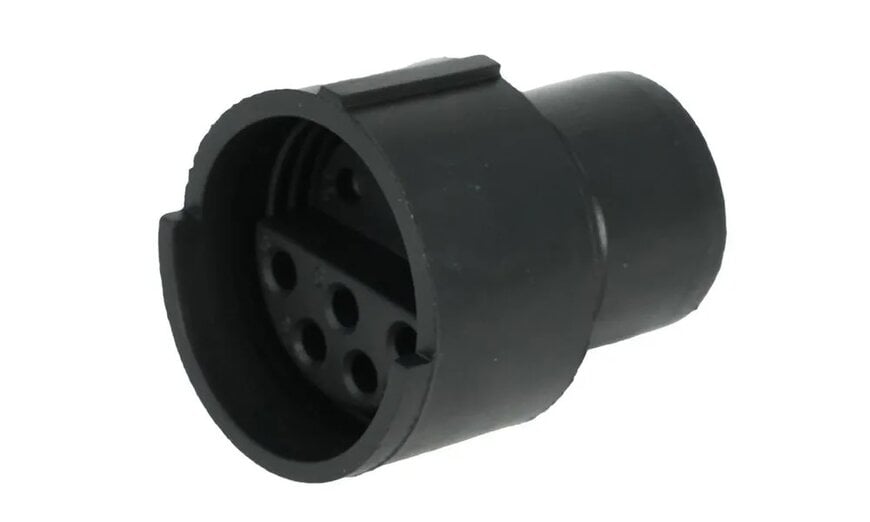

Wesgarde highlights Sure-Seal connectors for harsh-environment connectivity

Wesgarde has highlighted its portfolio of Sure-Seal connectors, engineered to protect critical electrical connections from water ingress, dirt, vibration, and chemical contamination. Available in Standard, Mini, and Power configurations, the connector series delivers reliable power and signal distribution across mobile machinery, marine vessels, and industrial equipment. Meeting IP67 and DIN 400 50 standards, the connectors are rated for continuous immersion in a 5 percent saltwater solution at a depth of three feet for at least 24 hours, ensuring reliable performance in corrosion-prone environments.

Environmental resilience and chemical resistance
Engineered to withstand harsh operating conditions, Sure-Seal connectors operate across a temperature range of -40°C to +105°C (-40°F to +221°F). The elastomeric bodies maintain sealing integrity when exposed to aggressive automotive and industrial fluids, including brake fluid, gasoline, diesel, antifreeze, lubricating oils, ultraviolet radiation, and ozone. Furthermore, the connector family meets Department of Transportation (DOT) specifications for shock, vibration, thermal cycling, and petroleum derivatives, making them well-suited for heavy-duty off-road and commercial transport architectures.

Flexible configurations and modular mounting
The series features a two-part construction consisting simply of the connector body and crimp contacts, which streamlines assembly and field maintenance. Rear-contact insertion and molded polarization keys prevent mismating during installation. For diverse power requirements, Standard Sure-Seal units offer one- to 10-circuit options rated up to 15 A per contact (14–18 AWG), Mini versions provide two- to four-circuit layouts rated up to 8 A (18–20 AWG), and Power Sure-Seal variants support high-current loads up to 85 A (4, 8, and 10 AWG). OEMs can also tailor installations using optional strain-relief boots, sealing plugs, and mounting hardware.

Additional Context: Elastomeric sealing mechanisms in sealed connectors
This section details technical specifications and competitive benchmarking not included in the original product announcement.

In harsh transportation environments, traditional hard-shell circular or rectangular connectors (such as rigid nylon or metal shells) rely on internal interfacial silicone gaskets and separate grommets to achieve environmental sealing. Over time, heavy vibration and thermal cycling can cause these rigid interfaces to micro-fret or loosen, allowing moisture to wick along the conductor strands. In contrast, connectors molded from specialized elastomeric materials (such as nitrile or EPDM rubber) utilize single-piece bodies that naturally act as compression seals. When the pin and socket halves mate, the elastomeric housing compresses around both the individual wire insulation and the connector interface, creating a continuous, void-free hermetic seal. This flexible construction dampens severe vibrational shocks and resists interfacial degradation from prolonged contact with petroleum distillates and degreasers, providing a cost-effective alternative to expensive overmolded harnesses.

Edited by an industrial journalist, Lekshman Ramdas, with AI assistance.

www.wesgarde.com
