Industrial Compact Fans for High-Density Thermal Management

Escalating volumetric power density across industrial control cabinets, power conversion systems, and modular battery energy storage arrays generates concentrated heat loads within tightly constrained enclosures. Compact forced-air cooling systems face severe flow resistance created by densely packed printed circuit boards, filtration media, and busbars, necessitating fan architectures capable of sustained pressure generation without aerodynamic stalling or excessive acoustic emissions.

Aerodynamic Optimization and Impeller Geometry
At the SPS trade show in Nuremberg scheduled from November 24 to 26, 2026, ebm-papst will display its industrial electronics cooling portfolio in Hall 1, Booth 1-334. The showcase highlights compact fan architectures engineered to balance volume flow, static pressure development, noise limits, and physical envelope constraints in demanding power electronics.

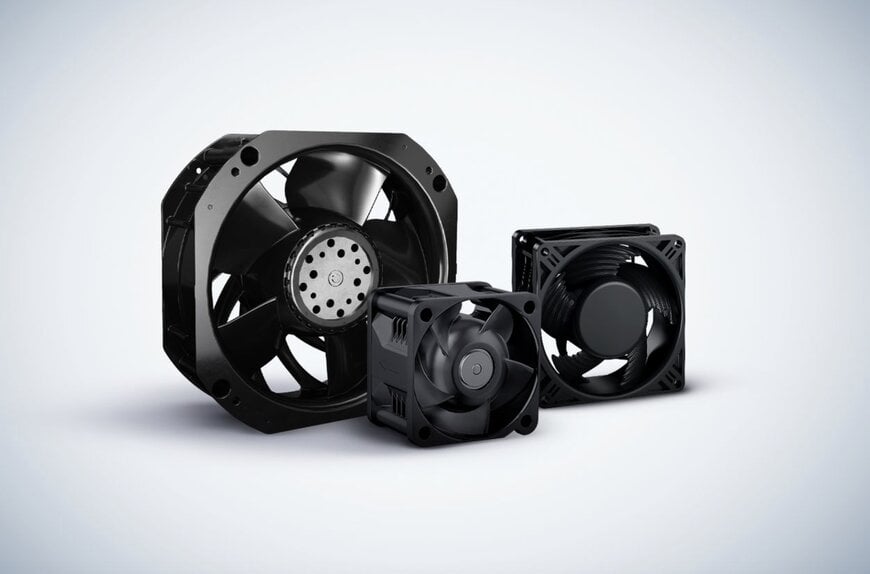

The AxiForce compact fan series addresses internal equipment layouts characterized by high back-pressure. Designed with a steep aerodynamic characteristic curve, the fan maintains stable airflow delivery even as circuit components or protective intake filters restrict passage geometry. This aerodynamic profile prevents operational drop-off in variable-frequency drives, power supplies, automation racks, electric vehicle fast-charging infrastructure, and stationary energy storage modules. The unit incorporates optimized housing contours and blade profiles to suppress vortex shedding, combining electrical efficiency with lower operational sound pressure across multiple frame dimensions.

Turbulence Suppression and Tip Clearance Elimination
For applications subject to elevated heat dissipation requirements and continuous duty cycles, ebm-papst developed the AxiEco 200 axial fan. The design incorporates an integrated impeller wheel with zero tip clearance relative to the shroud housing. Eliminating the physical gap between the rotating blade tips and the outer wall suppresses tip leakage flow and inlet recirculating vortices, which are primary contributors to energy losses and broadband aerodynamic noise in standard axial configurations.

The integrated housing design guides discharged air through integrated outlet guide vanes, transforming dynamic turbulent velocity into usable static pressure. The AxiEco 200 incorporates active electronic monitoring and protection routines, alongside digital bus interfaces such as MODBUS, enabling predictive thermal management and variable speed adjustment via pulse-width modulation or analog control voltages directly integrated with plant supervisory controllers. In addition to these dedicated lines, the manufacturer maintains an extended portfolio of axial, diagonal, and centrifugal compact units to support diverse spatial envelopes and hydraulic operating points across industrial automation environments.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

In forced-convection cooling of industrial electronic assemblies, aerodynamic performance is verified according to the ISO 5801 test standard for industrial fans. Standard axial fans exhibit a pronounced dip or saddle region in their performance curves at mid-to-high pressure ranges, where flow separation along the blade suction side induces stall flutter and sharp acoustic spikes. To overcome this limitation, specialized designs such as the AxiForce series achieve static pressure peaks reaching 1,200 Pascals in frame dimensions ranging from 80 mm to 172 mm, generating airflow volumes up to 650 cubic meters per hour while lowering sound power by up to 6 decibels in comparative acoustic evaluations.

Within harsh outdoor and industrial deployments, such as utility-scale battery energy storage systems (BESS) and ultra-fast DC charging stations, environmental ingress poses substantial reliability risks. The AxiEco 200 addresses these challenges through encapsulated electronically commutated (EC) drive units certified up to Ingress Protection rating IP68, with thermal operating windows spanning from minus 30 degrees Celsius to plus 60 degrees Celsius. In competitive benchmarking against traditional open-frame axial units from manufacturers such as Sanyo Denki or Delta Electronics, eliminating blade tip gap leakage enables the AxiEco platform to achieve static pressure capabilities approaching 950 Pascals and volumetric delivery reaching 1,820 cubic meters per hour, delivering up to a 9 percent increase in aerodynamic efficiency without requiring a transition to larger radial blower configurations.
