JAE DZ17 SPE Connectors Available via Rutronik

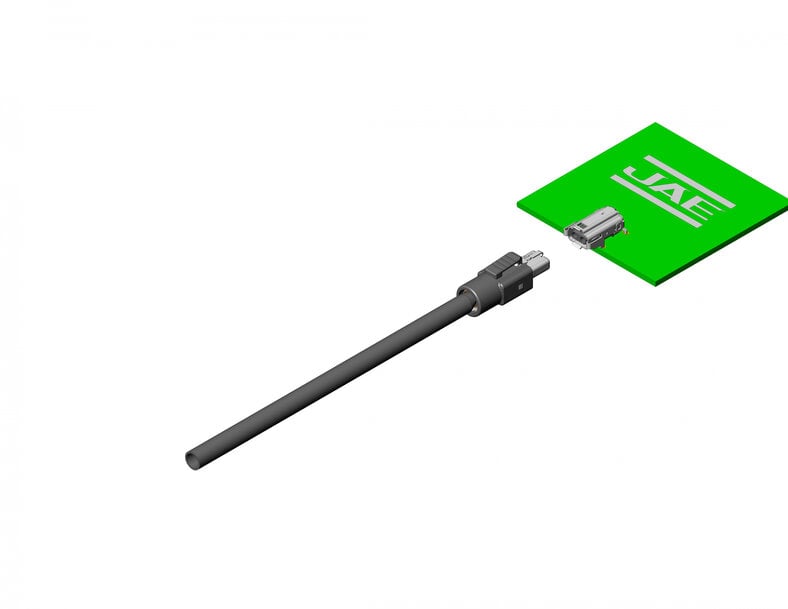

JAE has introduced the DZ17 series, a compact and shielded Single Pair Ethernet (SPE) connector solution tailored for industrial communication networks. Compliant with the IEC 63171-6 standard, the new series establishes a standardized connection between field-level devices and a single twisted-pair cable, reducing the amount of copper required by approximately 25% compared to conventional four-pair Ethernet setups. Available in multiple configurations—including PCB sockets and straight or angled plugs—the DZ17 features an Insulation Displacement Contact (IDC) variant that enables tool-free field assembly without prior wire stripping.

Designed to support gigabit data rates, the two-pole DZ17 series is compatible with IEEE 802.3cg (10BASE-T1L), 802.3bw (100BASE-T1), and 802.3bp (1000BASE-T1) standards. The connector also supports Power over Data Line (PoDL), enabling the simultaneous transmission of data and DC voltage (rated at 4 A per contact and 60 VDC) over the same twisted pair. With a straight plug length of just 25 mm, a robust metal locking spring, and a wide operating temperature range of -40 °C to 85 °C, the DZ17 series provides developers with a rugged, space-saving interface for sensors, robotics, and machine vision systems. The JAE DZ17 series is currently in the pre-production phase, with samples available now at Rutronik.

Additional Context
This section provides technological and market background not explicitly detailed in the original release.

The transition to Industry 4.0 and the Industrial Internet of Things (IIoT) requires seamless data communication from enterprise IT systems directly down to the lowest field level—sensors, actuators, and vision cameras. Historically, this has required a patchwork of legacy fieldbus protocols connected to higher-level Ethernet networks via complex, costly gateways. Single Pair Ethernet (SPE) eliminates these gateways, creating a unified, end-to-end IP-based architecture. However, traditional RJ45 connectors are too bulky for modern, miniaturized edge devices. The IEC 63171-6 standard provides a ruggedized, standardized SPE interface for harsh industrial environments, ensuring cross-vendor interoperability. Furthermore, the integration of PoDL allows miniaturized edge devices to receive power without a separate power supply cable, drastically reducing cable weight, installation time, and the overall physical footprint within crowded control cabinets and robotic arms.

Edited by Lekshman Ramdas, Induportals editor – adapted by AI.
