Stainless steel safety couplings for hygienic indirect and direct drives
ENEMAC has developed a series of stainless steel safety couplings to provide mechanical protection in hygiene-sensitive production environments and aggressive cleaning conditions.
www.enemac.de
Industrial production in the food, pharmaceutical, and medical technology sectors requires components that withstand frequent cleaning cycles and prevent contamination. The expansion of the ENEMAC portfolio includes safety couplings constructed entirely from stainless steel, specifically designed for these hygiene-critical areas. A primary technical feature of these units is the use of uncoated stainless steel disc springs. By eliminating surface coatings, the risk of particle flaking or corrosion during exposure to aggressive cleaning agents and disinfectants is mitigated, ensuring compliance with cleanroom and process industry standards.
Mechanical protection for indirect drive systems

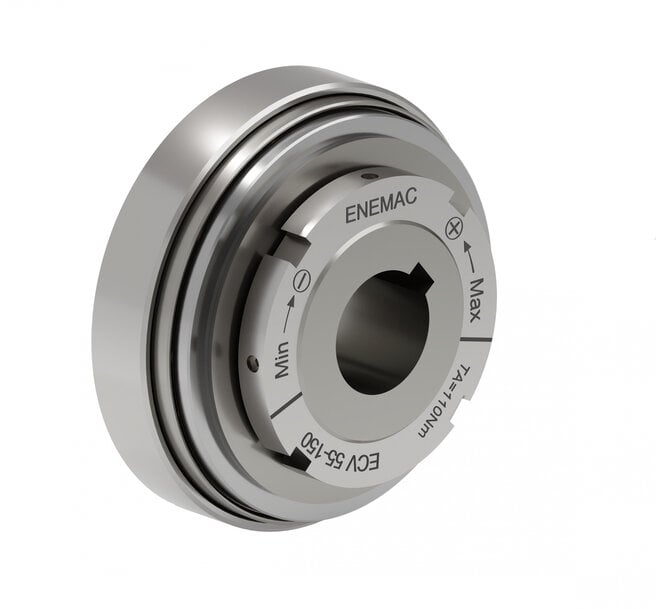

The ECV and ECW safety couplings are engineered for applications involving indirect drives, such as chain and timing belt systems. These components provide mechanical overload protection while managing lateral loads of up to 30,000 N. The ECV model utilizes a keyed connection for shaft attachment, whereas the ECW variant features a clamping hub. Both models operate within a torque range of 5 Nm to 900 Nm and support rotational speeds up to 4,000 rpm. The maintenance-free construction ensures operational longevity in environments where moisture and chemical exposure are constant.
Precision torque limitation for direct drives
For direct drive configurations, the ECWB and ECWD models integrate torque limitation with specific coupling mechanisms to address shaft alignment and vibration. The ECWB variant incorporates a metal bellows coupling, which allows the system to compensate for axial, radial, and angular shaft misalignments while maintaining torque accuracy. This model is rated for a wide temperature range from -50 °C to +150 °C. Conversely, the ECWD utilizes an elastomer coupling designed for vibration damping and backlash-free operation. This plug-in design simplifies installation in compact machinery. The ECWD is specified for temperatures between -30 °C and +90 °C.
Technical specifications and operational reliability
These safety couplings accommodate shaft diameters ranging from 8 mm to 65 mm. The mechanical disengagement mechanism provides a precise response to torque spikes, disconnecting the drive to prevent equipment damage. Because the internal components are resistant to corrosion and do not require lubrication that could contaminate the production line, they are suitable for beverage filling systems and general process engineering. The robust stainless steel housing and internal components ensure that the safety functions remain accurate over extended service lives without the need for frequent intervention or adjustment.
Edited by an industrial journalist, Lekshman Ramdas, with AI assistance.
