DC current measuring unit for industrial monitoring
Phoenix Contact introduces CMU DC unit for compact current monitoring, enabling early fault detection, energy analysis and easy integration in control cabinets.
www.phoenixcontact.com

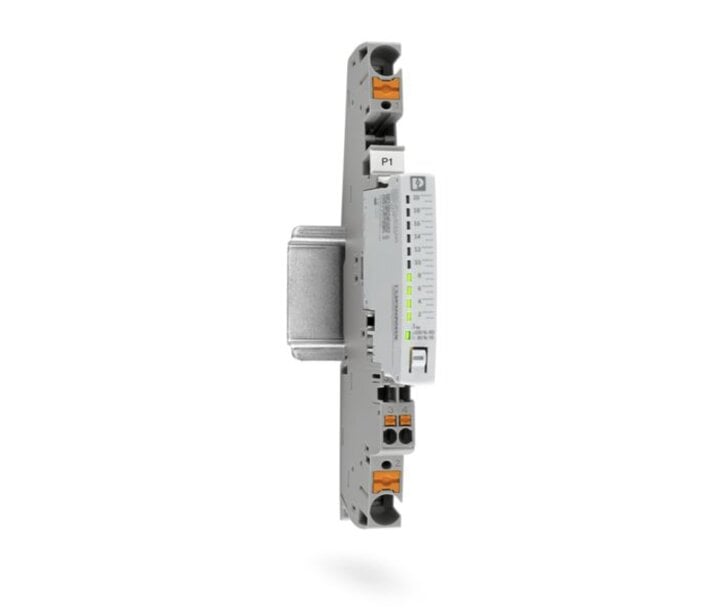

Phoenix Contact introduced the CMU DC current measuring unit, a modular solution designed to integrate energy and utilization monitoring into existing systems without extensive rewiring.
The CMU DC current monitoring unit serves as a diagnostic tool for detecting system loads and providing early warnings of potential failures. By integrating with the Clipline complete terminal block range, the unit allows for easy expansion of existing electrical installations. The technology is primarily aimed at industrial control cabinet applications where space is limited and real-time transparency of DC load status is required for preventive maintenance.
Modular Integration and Space Efficiency
A defining technical characteristic of the CMU DC is its 8 mm profile, which facilitates high-density installation in tight control cabinets. The unit minimizes wiring effort through its direct bridgeability with standard terminal blocks. This hardware compatibility ensures that current monitoring can be added to a digital supply chain of power distribution without significant downtime or complex configuration.
Key installation and setup features include:
- Tool-Free Configuration: Threshold values are defined via integrated rotary switches on the side of the housing, eliminating the need for external software.
- Bridgeable Architecture: The device utilizes the standard plug-in bridge system of the Clipline complete range for power and signal distribution.
Load Visualization and Signal Processing
The CMU DC utilizes a dual-signaling approach to maintain transparency across the automotive data ecosystem of a manufacturing plant. For local diagnostics, an LED display on the front panel provides an immediate optical representation of the actual load status. When defined current thresholds are exceeded, a specific warning message is triggered.
For remote monitoring and advanced data analytics, the unit provides:
The CMU DC utilizes a dual-signaling approach to maintain transparency across the automotive data ecosystem of a manufacturing plant. For local diagnostics, an LED display on the front panel provides an immediate optical representation of the actual load status. When defined current thresholds are exceeded, a specific warning message is triggered.
For remote monitoring and advanced data analytics, the unit provides:
- Granular Data Output: The actual current value is transmitted in 0.1 A steps via remote signaling.
- Trend Analysis Support: This high-resolution data allows for remote capacity utilization monitoring and energy evaluations.
- Proactive Failure Prevention: By signaling load deviations early, the unit enables operators to address anomalies before a complete system failure occurs.
Technical Applications and Benefits
The primary application for the CMU DC is the monitoring of DC system loads in automated environments. By providing a continuous data stream of current consumption, the device supports trend analyses that help optimize energy use and identify aging components. The simplicity of the interface—relying on visual signals and physical switches—ensures that maintenance teams can deploy and interpret the device's status without specialized digital training.
Through its compact form factor and precise remote signaling, the CMU DC provides a scalable method for achieving maximum transparency in industrial power circuits.
Edited by Romila DSilva, Induportals Editor, with AI assistance.
The primary application for the CMU DC is the monitoring of DC system loads in automated environments. By providing a continuous data stream of current consumption, the device supports trend analyses that help optimize energy use and identify aging components. The simplicity of the interface—relying on visual signals and physical switches—ensures that maintenance teams can deploy and interpret the device's status without specialized digital training.
Through its compact form factor and precise remote signaling, the CMU DC provides a scalable method for achieving maximum transparency in industrial power circuits.
Edited by Romila DSilva, Induportals Editor, with AI assistance.
