Heavy-duty connectors for rail and industrial power systems

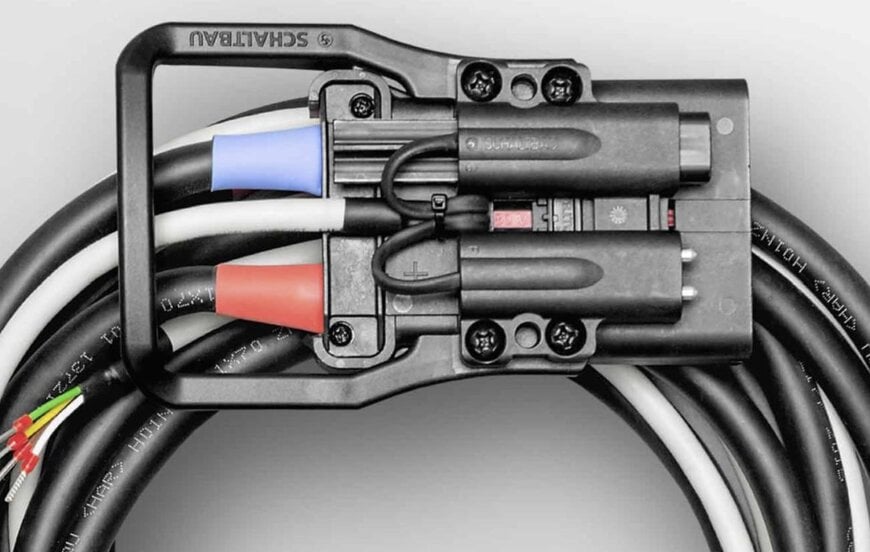

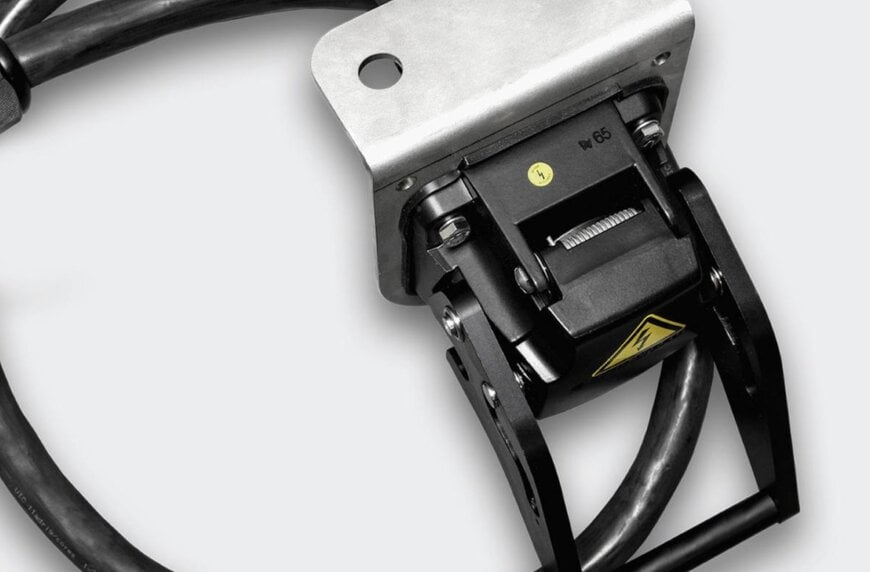

Heavy-duty connectors are central to maintaining safe and stable power and signal transmission in rail transport, utility infrastructure, and industrial systems. In this context, Wesgarde has highlighted a range of connector solutions from Schaltbau designed for high-reliability environments, combining rugged construction with pre-assembled cable configurations.

Connectors aligned with railway safety and control standards
In rail systems, connector reliability directly affects braking systems, train communication, and operational safety. The Schaltbau EP series is designed for electro-pneumatic brake systems and emergency brake bypass functions, where failure tolerance is minimal. Compliance with UIC 541-5 VE ensures interoperability across railway platforms, while an integrated pilot contact provides mechanical and electrical mating feedback during coupling.

Pre-assembled single and double-ended hybrid cables reduce manual wiring effort and minimize field testing requirements. This approach supports faster deployment and reduces installation variability across rolling stock.

Data transmission for onboard digital systems
Modern trains rely on a distributed digital supply chain of onboard systems, including passenger information, surveillance, and connectivity platforms. The UIC and UIC-IT connector series support these requirements through high-speed data interfaces.

The UIC-IT variant integrates an 8-pole Gigabit Ethernet module alongside optional signal contacts, enabling transmission for applications such as passenger counting systems, onboard video, and WiFi networks. Break-away jumper designs provide mechanical protection by disconnecting under excessive load, reducing damage to equipment during operation or maintenance.

Modular train line connectivity and serviceability
Train line connections between locomotives, motor cars, and trailers require both flexibility and robustness. The ZH series, compliant with UIC 552, supports these connections with design features aimed at maintainability.

The ZS552 coupling receptacle uses a symmetrical structure and common terminal layout to simplify cable routing. Front-removable inserts allow easier servicing, while optional lock-and-key mechanisms control access. Non-halogen, high-voltage-tested cables improve safety in enclosed environments and meet fire protection requirements.




Combined power and control in transport systems
For multiple unit operations in rail and road vehicles, connectors must handle both power and control circuits within compact interfaces. The B series supports voltages up to 600 V DC and 400 V AC, with modular configurations of up to 59 contacts plus protective earth (PE).

This modularity enables integration of additional functions such as interlocking circuits without redesigning the connector interface. Pre-assembled cable options further reduce wiring complexity for OEMs, supporting faster assembly and consistent electrical performance.

Utility and switchgear integration
In energy and utility infrastructure, connector systems must withstand environmental stress while maintaining secure electrical interfaces. The G series is designed for medium-voltage transformer and switchgear cabinet applications, with configurations up to 32+PE contacts and ratings up to 400 V and 120 A.

Pre-assembled plugs and receptacles with potted inserts enhance sealing and mechanical stability. Polarization options prevent incorrect mating, while bayonet coupling ensures secure locking under vibration or load conditions. These features support modular expansion and refurbishment of electrical systems.

Installation efficiency and system reliability
Across rail, industrial, and utility applications, pre-assembled connector systems reduce installation time, limit wiring errors, and improve repeatability. By integrating standardized interfaces with rugged mechanical design, these connectors support both operational safety and maintenance efficiency in demanding environments.
