Environmental Monitoring Systems for Coordinate Measuring Machine Reliability

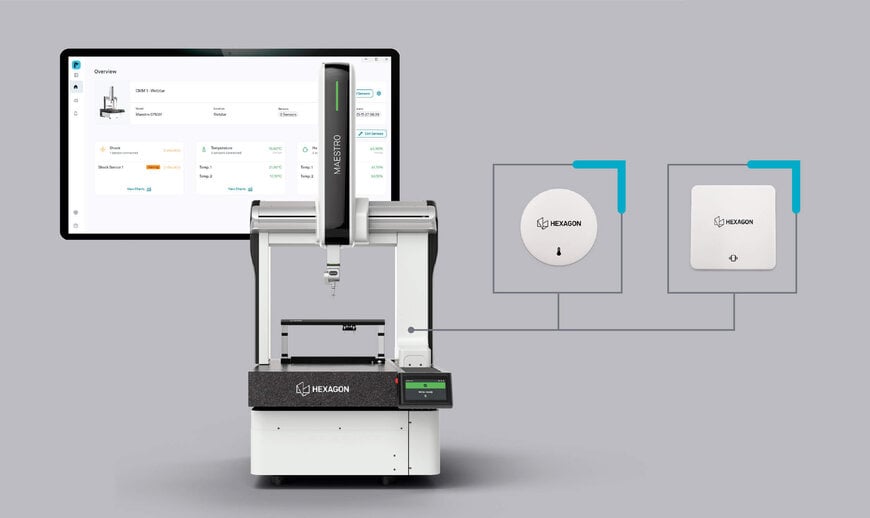

The updated hardware and software platform functions as an integrated sensing layer for coordinate measuring machines (CMMs), monitoring physical variables that compromise metrological traceability. By quantifying temperature fluctuations, humidity, vibration, shock, and probe deflection, the system addresses the technical challenges of moving high-precision inspection from climate-controlled laboratories to dynamic shop-floor environments.

Real-Time Data Integration and Automation
The system utilizes the Hexagon Metrology Communication Interface (MCI) to bridge the gap between inspection hardware and the wider digital supply chain. This interface allows environmental telemetry to be consumed by Programmable Logic Controllers (PLCs) and Manufacturing Execution Systems (MES) without the requirement for custom middleware. By standardizing data output, the platform enables automated cells to pause or flag inspection routines if environmental thresholds — such as thermal gradients or seismic interference — exceed the limits defined by the machine’s Maximum Permissible Error (MPE) specifications.

Technical Differentiation of Kinetic Events
A significant technical enhancement in the latest iteration is the ability to distinguish between ambient environmental vibration and specific probe deflection events. Standard accelerometers often struggle to categorize kinetic energy; however, this system analyzes shock profiles to identify physical collisions. According to Luca Sala, Product Manager Digital Solutions at Hexagon, this capability allows operators to determine if an event necessitates immediate recalibration or if it falls within acceptable operating parameters, thereby reducing unnecessary machine downtime.

Application in Uncontrolled Production Environments
As manufacturing moves toward unattended and automated workflows, the reliability of the "black box" inspection process becomes critical. In these scenarios, the system provides a continuous audit trail of the conditions present during each measurement cycle. This is particularly relevant in industries adhering to VDA or AIAG standards, where environmental stability must be documented to ensure the validity of Statistical Process Control (SPC) data.

The modular architecture is now compatible with the full range of Hexagon CMMs and can be deployed across mixed-fleet environments. This interoperability ensures that large-scale manufacturing sites can standardize their data structures for environmental monitoring, regardless of the specific machine model or vintage. By grounding measurement results in empirical environmental data, the system mitigates the risk of false-pass or false-fail results caused by thermal expansion or floor-borne harmonics.
