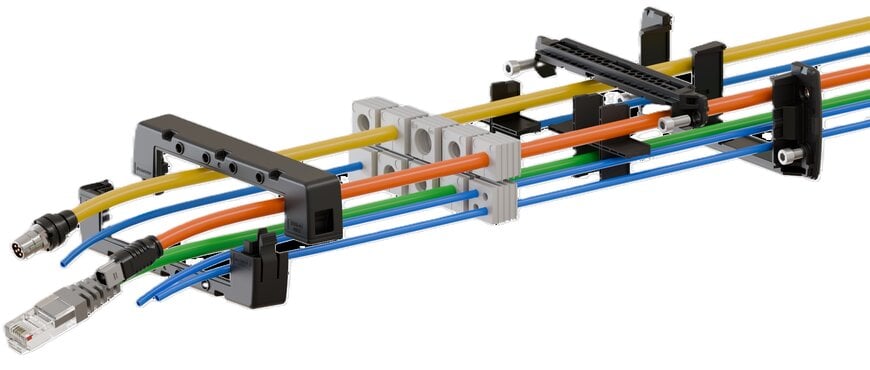

Conta-Clip Unveils Modular KDSI-SR-G Cable Entry for Maximum Cabling Flexibility
New split-frame design enables faster installation, easy retrofits, and IP66-rated sealing.
www.conta-clip.com
Conta-Clip continuously expands and improves its cable management solutions and now presents the inverted modular cable entry system KDSI-SR-G for simple and service-friendly assembly from the outside to the inside. Users can feed cables with and without connectors into control cabinets, enclosures and machines and significantly speed up assembly. The design also enables easy changes to the installation at any time.
The screwless, horizontally latching frame halves made of glass-fiber reinforced polyamide PA 6.6 feature dovetail profiles and thus do not have to be screwed but simply lock in place. Their double, overlapping integrated and captive TPE gasket ensures tight sealing according to protection type IP66. The black cable entry fits in standard cut-outs for 4, 10, 16 and 24-pin heavy-duty connectors. Furthermore, the 8/16 frame has a fixed partition and can be equipped with two 4-piece inlays.
KDSI-SR-G fits cables with all connector sizes and allows the greatest possible variability in the order of assembly. It can either be attached directly to the housing with screws, partially assembled or pre-assembled externally for later mounting – which makes the versatile and time-saving system particularly interesting for cable assemblers as the customer-specific application decides which frame and assembly methods are used. The cable entry offers maximum flexibility with optimized warehousing by using the proven modular KDS system for accessories such as inlays and sealing elements.
